Molly Bolt Hollow Wall Anchor

The “Molly” bolt hollow wall anchor is designed for fastening building materials to substrates with a low load-bearing capacity, such as gypsum boards, chipboard or hollow brick. Also used when frequent dismantling of the structure is required.

The molly bolt, made of galvanized steel and equipped with a metric thread, has folding anchor parts, which, during installation, change and open on the other side of the base, firmly and reliably fixing on the surface. It is resistant to corrosion.

The Molly bolt has several varieties:

Molly bolt hollow wall anchor.

Molly eye bolt hollow wall anchor.

Molly hook bolt hollow wall anchor.

Molly hex bolt hollow wall anchor.

Installation Instructions

Installation can be carried out in two ways: using special pliers, using a screwdriver.

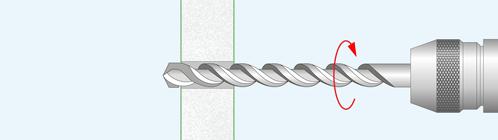

1. Make a hole of the right diameter and depth and clean it.

qq1

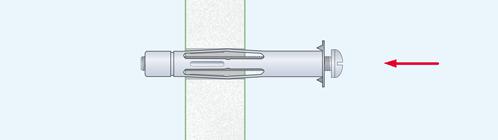

2. Place the expansion sleeve in the borehole.

qq2

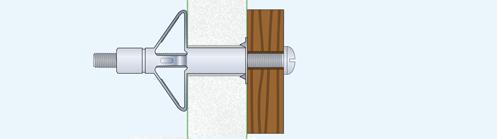

3. The attachment is ready to accept the load.

qq3

Molly Bolt Hollow Wall Anchor

Carbon steel with zinc plated

Item No.	Size	L1	L2	Grip-K	Board Thk. Range	Anchor outer dia.	Drill Size	Holding Load	Box	Carton
	mm	mm	mm	mm	mm	mm	mm	lb	pcs	pcs
MBH-03801	M4X20	20	27	5	3-8	8	8	30	500	5000
MBH-03802	M4X32	32	39	7	3-9	8	8	35	350	3500
MBH-03803	M4X38	38	45	12	8-15	8	8	40	300	3000
MBH-03804	M4X46	46	53	19	16-22	8	8	40	250	2500
MBH-03805	M4X52	52	60	20	18-23	8	8	55	250	2500
MBH-03806	M4X60	60	67	35	32-38	8	8	55	200	2000
MBH-03807	M5X37	37	44	9	5-13	10	10	55	200	2000
MBH-03808	M5X52	52	60	12	5-18	10	10	55	150	1500
MBH-03809	M5X65	65	73	25	14-32	10	10	55	100	1000
MBH-03810	M5X80	80	87	40	28-45	10	10	55	100	1000
MBH-03811	M6X37	37	45	9	5-13	12	12	65	150	1500
MBH-03812	M6X52	52	60	12	5-18	12	12	65	100	1000
MBH-03813	M6X65	65	73	25	14-32	12	12	65	100	1000
MBH-03814	M6X80	80	87	40	28-45	12	12	65	90	900
MBH-03815	M8X37	37	45	9	5-13	16	16	70	100	1000
MBH-03816	M8X52	52	60	12	5-18	16	16	70	90	900
MBH-03817	M8X65	65	73	25	14-32	16	16	70	80	800
MBH-03818	M8X80	80	88	40	28-45	16	16	70	70	700

Application

It is widely used in the construction and household spheres. They fasten various items, for example: curtain rods for curtains and paintings, switches and shelves, lamps and hooks for towels, baseboards and other things. The Molly bolt is used to create a strong and effective fastening in: gypsum fiber boards, drywall, chipboard, ceilings of towed blocks, hollow bricks and panels behind which there is an empty space.
