Molly Hook Bolt Hollow Wall Anchor

Molly Hook Bolt Hollow Drive Wall Anchor is also called Hollow Wall Anchor With A Hook.

The “Molly” hook bolt hollow wall anchor is designed to create fastening of structures to hollow materials or sheet bases. The molly hook bolt, made of galvanized steel and equipped with a metric thread, has folding anchor parts, which, during installation, change and open on the other side of the base, firmly and reliably fixing on the surface. It is resistant to corrosion.



The Molly metal bolt has several varieties:

Molly bolt with metric thread hollow wall anchor.

Molly eye bolt hollow wall anchor.

Molly hook bolt hollow wall anchor.

Molly hex bolt hollow wall anchor.


Installation Instructions

Installation Instructions

qq1

Application

It is widely used in the construction and household spheres. They fasten various items, for example: curtain rods for curtains and paintings, switches and shelves, lamps and hooks for towels, baseboards and other things.

The Molly bolt is used to create a strong and effective fastening in: gypsum fiber boards, drywall, chipboard, ceilings of towed blocks, hollow bricks and panels behind which there is an empty space.



Installation instructions:

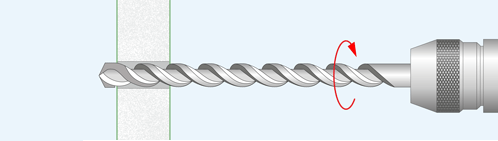

1.Make a hole of the right diameter and depth and clean it.

bb1

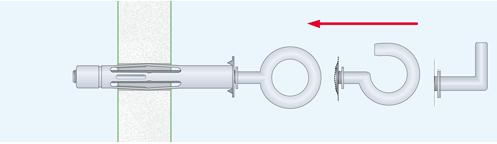

2.Place the expansion sleeve in the borehole.

bb2

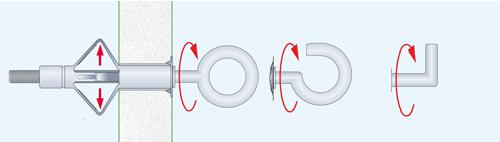

3.Screw the hook into the sleeve until you get clear resistance.

bb3

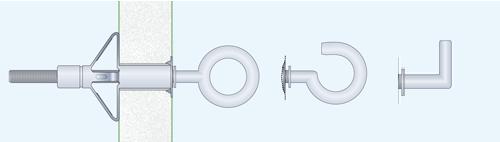

4.The attachment is ready to accept the load.

bb4

Molly Hook Bolt Hollow Drive Wall Anchor

Carbon steel with zinc plated

1

Item No.

Size

Wire Diameter

Total Length

Inner eye Diameter

Thread Length

Bag

Carton



mm

mm

mm

mm

pcs

pcs

21014

M6X45

5.0±0.1

75+2

15±1

45±1

200

800

21015

M6X60

5.0±0.1

90+2

15±1

60±1

100

700

21016

M8X60

7.0±0.1

95+2

15±1

60±1

100

400

21017

M8X80

7.0±0.1

115+2

15±1

80±1

100

400

21018

M8X100

7.0±0.1

135+2

15±1

100±1

100

300

21019

M10X70

8.7±0.1

115+2

20±1

70±1

100

300

21020

M10X80

8.7±0.1

125+2

20±1

80±1

100

300

21021

M10X90

8.7±0.1

135+2

20±1

90±1

100

300

21022

M10X100

8.7±0.1

145+2

20±1

100±1

100

300

21023

M10X120

8.7±0.1

165+2

20±1

120±1

100

200

21024

M12X80

10.6±0.1

135+2

25±1

80±1

100

200

21025

M12X100

10.6±0.1

155+2

25±1

100±1

100

100

21026

M12X120

10.6±0.1

175+2

25±1

120±1

100

100

Application

It is widely used in the construction and household spheres. They fasten various items, for example: curtain rods for curtains and paintings, switches and shelves, lamps and hooks for towels, baseboards and other things. The Molly bolt is used to create a strong and effective fastening in: gypsum fiber boards, drywall, chipboard, ceilings of towed blocks, hollow bricks and panels behind which there is an empty space.
