Rivet Nut – Flat Head Semi-hexagonal Body, Open Type

The Rivet Nut, Flat Head Semi-hexagonal Body, Open Type is an innovative riveting fastener designed for efficient assembly and reliable rotation resistance. It skillfully combines the flush appearance of a flat head, the superior anti-rotation performance of a semi-hexagonal body, and the through-connection convenience of an open-end.

Its unique semi-hexagonal body design locks firmly into the base material after riveting deformation, providing torque resistance comparable to a hex nut, while offering significantly lower installation resistance than a full-hexagon rivet nut. This achieves an ideal balance between reliable anti-rotation and installation ease, making it a perfect choice for automated assembly lines and applications requiring efficient anti-loosening solutions.

Technical Parameters

▪Material Available – Carbon Steel, Stainless Steel, Aluminum.

▪Products Sizes – M3-M12 (Metric), 6#-1/2″ (Imperial). Or customize your size.

▪Custom Finish – Zinc-plated, Nickel Plated, Black Plated, Clean Bright.

Key Features

▲Flat Head: Provides a flush finish for a clean look and even load distribution.

▲Semi-Hex Body: Offers excellent anti-rotation lock with lower installation force than a full-hex nut.

▲Open End: Enables through-bolting and prevents installation issues.

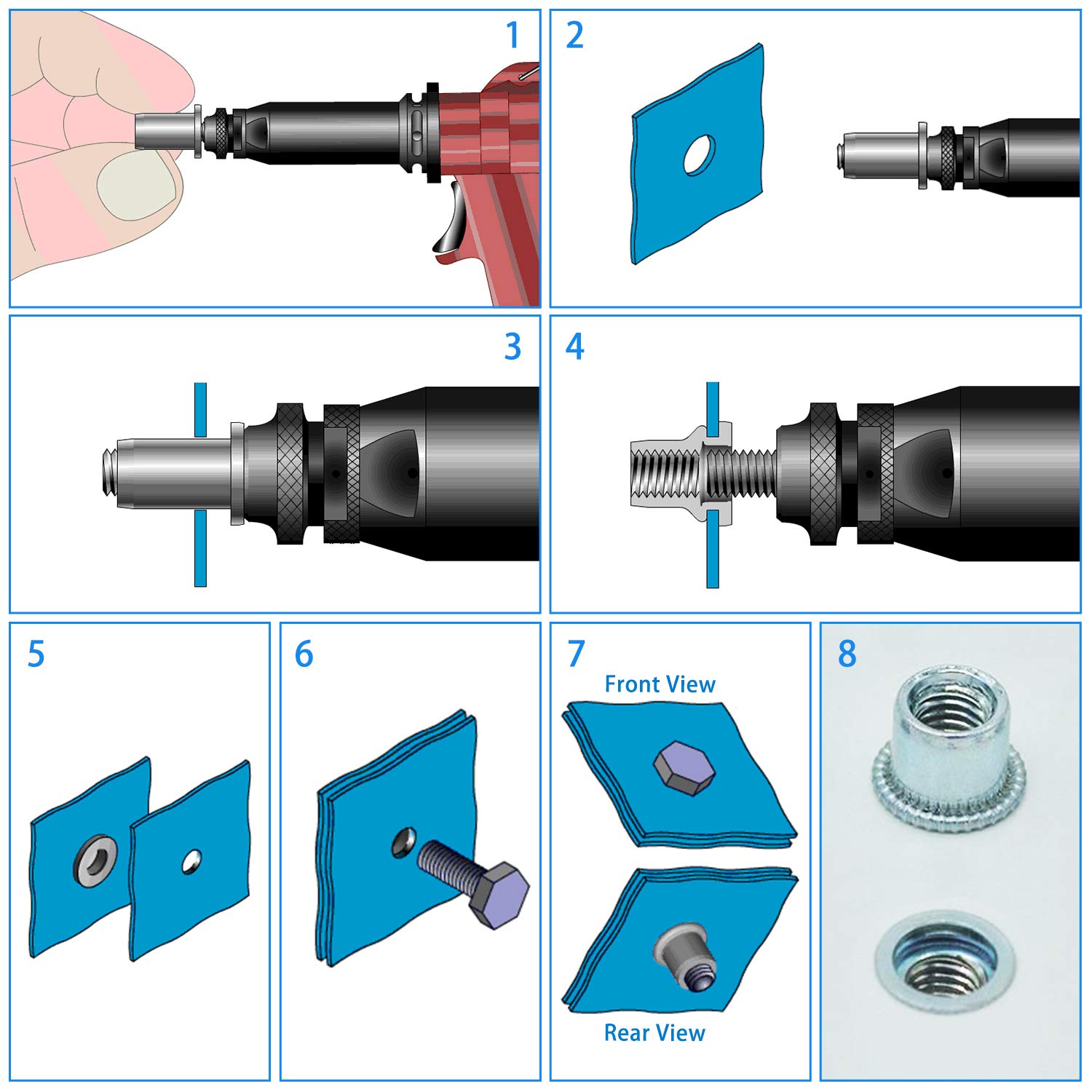

Installation Instructions

1. Install the rivet nut.

1. Install the rivet nut.

2. Insert the rivet nut into the hole.

3. Press the handle to rivet the nut in place.

4. Pull out the lever and complete the riveting.

5. To secure other component, place it on the rivet nuts.

6. Screw the bolt into the rivet nut to secure them.

7. Installation complete.

Technical Specification

RIVET NUT - Flat Head, Semi-hexagonal Body, Open Type

Item No.	Size	d	L	d1	dk	k	Bag	Carton
		mm	mm	mm	mm	mm	pcs	pcs
RNFC-11001	M3 X 9	M3	9^±0.3	Ø4.9^±0.07	Ø8^±0.2	0.8^±0.15	2000	20000
RNFC-11002	M4 X 11	M4	11^±0.3	Ø5.9^±0.07	Ø9^±0.2	0.9^±0.15	2000	20000
RNFC-11003	M5 X 13	M5	13^±0.3	Ø6.9^±0.07	Ø10^±0.2	1.0^±0.15	1000	10000
RNFC-11004	M6 X 15	M6	15^±0.3	Ø8.9^±0.07	Ø12.3^±0.2	1.2^±0.15	500	5000
RNFC-11005	M8 X 18	M8	18^±0.3	Ø10.9^±0.07	Ø14.5^±0.3	1.5^±0.15	250	2500
RNFC-11006	M8 X 21	M8	21^±0.3	Ø10.9^±0.07	Ø14.5^±0.3	1.5^±0.15	250	2500
RNFC-11007	M10 X 19	M10	19^±0.3	Ø12.9^±0.07	Ø17^±0.3	1.7^±0.15	150	1500
RNFC-11008	M10 X 21	M10	21^±0.3	Ø12.9^±0.07	Ø17^±0.3	1.7^±0.15	150	1500
RNFC-11009	M12 X 22	M12	22^±0.3	Ø14.9^±0.07	Ø18.8^±0.3	1.8^±0.15	1000	1000
RNFC-11010	M12 X 24	M12	24^±0.3	Ø14.9^±0.07	Ø18.8^±0.3	1.8^±0.15	1000	1000
RNFC-11021	6#	18					2000	20000
RNFC-11022	8#-32	19					2000	20000
RNFC-11023	10#-24	22					2000	20000
RNFC-11024	5/32″ X 13	5/32″	13^±0.3				2000	20000
RNFC-11025	1/4″ X 15	1/4″	15^±0.3				500	5000
RNFC-11026	5/16″ X 18	5/16″	18^±0.3				250	2500
RNFC-11027	3/8″ X 18.5	3/8″	18.5^±0.3				150	1500
RNFC-11028	1/2″ X 19	1/2″	19^±0.3				100	1000

Application

Rivet nut applied to all kinds of metal sheets. Specific applications include: Medical Equipment, Automotive Body, Appliances Repair, Home Decoration, Interior Panels, Sheet Metal Enclosures & Electrical Cabinets, Rail Transit Interiors, HVAC Ducting, Light Steel Structures.
