Eyebolt

An eyebolt is a mechanical fastener with a threaded shaft and a head forming a ring. Available with internal diameter 13 and 50 mm, is an anchoring system particularly suitable for fixing scaffolding requiring an additional connecting element between eyebolt and scaffolding, and hang the rope and chain on the wall. Load values are subjected to the type of contact carried out.

Special type of eyebolt include: Screw eyes (or eye screws), Pigtail eye bolts and so on.



▪The eyebolt can be used again with a new expansion body.

▪It must be used KSD or KSD-R steel expansion sleeve with metric internal thread to fix the scaffold to the external wall of the building, and hang the rope and chain on the wall.

▪Material Available – Carbon Steel with zinc plated, Stainless Steel.

▪Custom Sizes – Our unique mass customization manufacturing operation allows us to customize sizes far more easily than any other provider.

▪Custom Finish - We can offer zinc plated, yellow zinc plated, black zinc plated, nickel plating, chrome plating, hot deep galvanized, Darcromet coating.


Installation Instructions

Make a hole of the right diameter and depth and clean it

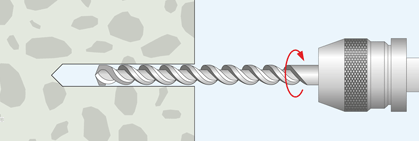

1.Make a hole of the right diameter and depth and clean it.

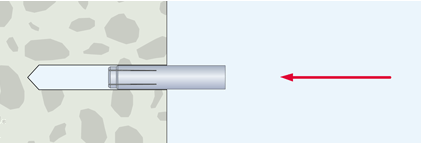

2.Place the expansion sleeve in the borehole

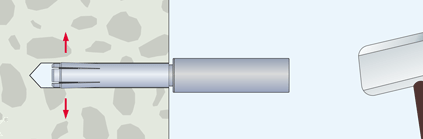

3.Place the tool in the sleeve and hit it with a hammer until it stops at the edge of the sleeve.

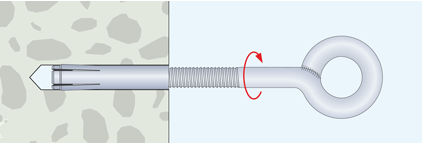

4.Screw the hook into the sleeve until you get clear resistance.

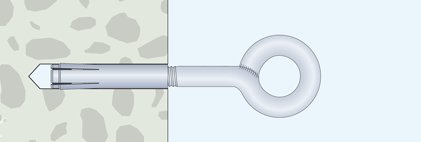

5.The attachment is ready to accept the load.


Eyebolt

Metric thread, white zinc plated

1-1254

Item No.

Ø Hole

Wire Diameter

Total Length

Inner eye diameter

Bag

Carton

mm

mm

mm

mm

pcs

pcs

EB M3/60/85

3

2.6±0.1

85+2

13±1

100

600

EB M4/55/80

4

3.5±0.1

80+2

15±1

100

600

EB M4/70/95

4

3.5±0.1

95+2

15±1

100

600

EB M5/70/100

5

4.4±0.1

100+2

15±1

100

600

EB M5/100/130

5

4.4±0.1

130+2

15±1

100

600

EB M6/50/80

6

5.2±0.1

80+2

15±1

100

600

EB M6/70/100

6

5.2±0.1

100+2

15±1

100

600

EB M6/95/130

6

5.2±0.1

130+2

15±1

100

600

EB M8/60/100

8

7.0±0.2

100+2

24±1

100

400

EB M8/70/110

8

7.0±0.2

110+2

24±1

100

400

EB M8/85/130

8

7.0±0.2

130+2

24±1

100

400

EB M8/105/150

8

7.0±0.2

150+2

24±1

100

400

EB M10/75/130

10

9.0±0.2

130+3

24±1

50

200

EB M12/80/135

12

10.7±0.3

135+3

24±2

50

100

Eyebolt

Welded eye hook with metric thread, white zinc plated

2-1230

Item No.

Ø Hole

Wire Diameter

Working Length

Inner eye diameter

Bag

Carton

mm

mm

mm

mm

pcs

pcs

EB M10/100

10

10.0-0.3

100+3

23±2

100

100

EB M10/140

10

10.0-0.3

140+3

23±2

100

100

EB M10/160

10

10.0-0.3

160+3

23±2

100

100

EB M10/190

10

10.0-0.3

190+3

23±2

100

100

EB M10/230

10

10.0-0.3

230+3

23±2

100

100

EB M10/260

10

10.0-0.3

260+3

23±2

100

100

EB M12/90

12

12.0-0.3

90+5

23±2

100

100

EB M12/120

12

12.0-0.3

120+5

23±2

100

100

EB M12/160

12

12.0-0.3

160+5

23±2

100

100

EB M12/190

12

12.0-0.3

190+5

23±2

80

160

EB M12/230

12

12.0-0.3

230+5

23±2

80

160

EB M12/260

12

12.0-0.3

260+5

23±2

80

160

EB M12/300

12

12.0-0.3

300+5

23±2

50

100

Application

Suited for applications on solid and semisolid supports: stone, concrete, solid brick. Designed for joint scaffolding by means of extensions. Eyebolts are used to attach an eye to a structure, through which rope, cable or shackles can be secured. A common use is to create a lifting eye so that a crane can be attached to machinery, with special purpose lifting eyes rated for their safe working load.

  • stone
  • solid
