Eyebolt For Scaffolding

Welding ring with wood screws for construction. Available with internal diameter 23 and 50 mm, is an anchoring system particularly suitable for fixing scaffolding requiring an additional connecting element between eyebolt and scaffolding. Load values are subjected to the type of contact carried out.

An appropriate safety factor, of at least 3, is recommended. Load values are valid only if installation is performed accurately.

Designer is responsible for the choice of size and number of anchors. In case of anchoring on old building materials or materials of uncertain quality, it is always recommended to carry out tensile tests on site prior to using the eyebolt.



▪It must be used with nylon plug M14X100 or M16X100.

▪Material Available – Carbon Steel with zinc plated, Stainless Steel.

▪Custom Sizes - Our unique mass customization manufacturing operation allows us to customize sizes far more easily than any other provider.

▪Custom Finish - We can offer zinc plated, yellow zinc plated, black zinc plated, nickel plating, chrome plating, hot deep galvanized, Darcromet coating.

▪Strength data – Valid for a single anchor, isolated and far from the edges, on a thick member of sound quality. Concrete: 20KN, hollow brick: 7.5KN.


Installation Instructions

Installation Instructions

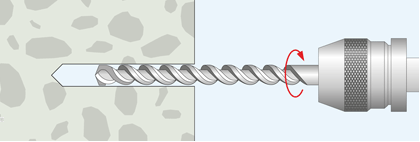

1.Make a hole of the right diameter and depth and clean it.

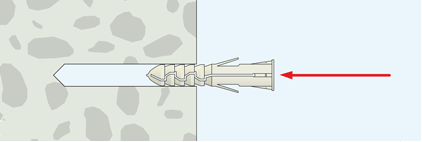

2.Put the sleeve of the locating pin into the hole. For the substrate covered with insulation layer, the lower limit flange shall be taken from the sheath in advance to ensure the correct depth of the pin embedded in the base plate.
Longer AG 14 can also be used.

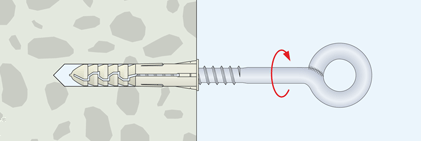

3.Screw the eyebolt into the correct depth.

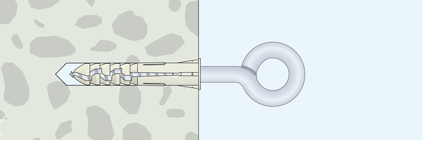

4.The bracket is ready to accept the load.


Eyebolt For Scaffolding

Internal diameter 23mm

1

Item No.

Ø Hole

Thread Diameter

Working Length

Inner eye diameter

Box

Carton

mm

mm

mm

mm

pcs

pcs

EB 8/80

10

8.0-0.2

80+2

23+2

100

100

EB 8/90

10

8.0-0.2

90+2

23+3

100

100

EB 8/100

10

8.0-0.2

100+2

23+2

100

100

EB 8/120

10

8.0-0.2

120+2

23+2

100

100

EB 8/140

10

8.0-0.2

140+2

23+2

100

100

EB 8/160

10

8.0-0.2

160+2

23+2

100

100

EB 10/80

12

10.0-0.2

80+3

23+2

100

100

EB 10/100

12

10.0-0.2

100+3

23+2

100

100

EB 10/120

12

10.0-0.2

120+3

23+2

100

100

EB 10/140

12

10.0-0.2

140+3

23+2

100

100

EB 10/160

12

10.0-0.2

160+3

23+2

100

100

EB 10/190

12

10.0-0.2

190+3

23+2

100

100

EB 10/220

12

10.0-0.2

220+3

23+2

100

100

EB 12/90

14

11.5-0.5

90+5

23+2

100

100

EB 12/120

14

11.5-0.5

120+5

23+2

100

100

EB 12/160

14

11.5-0.5

160+5

23+2

100

100

EB 12/190

14

11.5-0.5

190+5

23+2

80

80

EB 12/230

14

11.5-0.5

230+5

23+2

50

50

EB 12/260

14

11.5-0.5

260+5

23+2

50

50

EB 12/280

14

11.5-0.5

280+5

23+2

50

50

EB 12/300

14

11.5-0.5

300+5

23+2

50

50

EB 12/350

14

11.5-0.5

350+5

23+2

50

50

EB 12/400

14

11.5-0.5

400+5

23+2

25

25

EB 12/450

14

11.5-0.5

450+5

23+2

25

25

EB 12/500

14

11.5-0.5

500+5

23+2

25

25

EB 12/550

14

11.5-0.5

550+5

23+2

25

25

Eyebolt For Scaffolding

Internal diameter 23mm

2

Item No.

Ø Hole

Thread Diameter

Working Length

Inner eye diameter

Box

Carton



mm

mm

mm

mm

pcs

pcs

EB 12/14/50

14

11.5-0.5

140+5

50+2

20

20

EB 12/16/50

14

11.5-0.5

160+5

50+2

20

20

EB 12/20/50

14

11.5-0.5

200+5

50+2

20

20

EB 12/25/50

14

11.5-0.5

250+5

50+2

20

20

EB 12/30/50

14

11.5-0.5

300+5

50+2

20

20

Application

Suited for applications on solid and semisolid supports: stone, concrete, solid brick, semisolid brick. Designed for joint scaffolding by means of extensions.
