Hook Bolts

Ceiling Hook Bolt, toggle wings for ceiling installation cavity wall fixing ceiling hook: A toggle bolt with a hook consists of a bolt threaded through the center of two spring-loaded wings.

Hooks are made of metal, which is durable and sturdy, the toggle wings may spread the load over a wider area, suitable for mounting the swag hooks onto hollow walls.



▪Space-saving design - Saving space and make your room organized and household items kept in order.

▪Multi uses on hollow walls,up to 20-pound weight capacity per Ceiling Hook.

▪Never use a plastic toggle bolt to hang something from a ceiling. Plastic toggle bolts are meant to be used for lighter loads against a vertical wall.

▪Material Available – Carbon Steel with zinc plated, Stainless Steel.

▪Custom Sizes – Our unique mass customization manufacturing operation allows us to customize sizes far more easily than any other provider.

▪Custom Finish - We can offer zinc plated, yellow zinc plated, black zinc plated, nickel plating, chrome plating, hot deep galvanized, Darcromet coating.


Installation Instructions

Installation Instructions


Installation instructions:

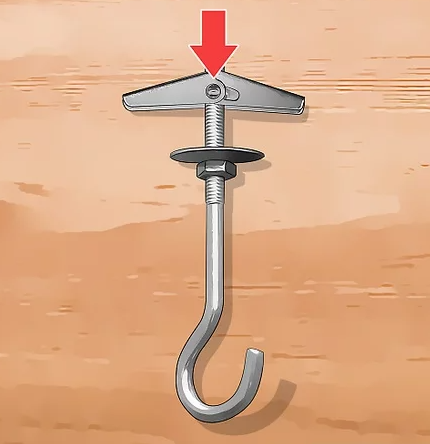

1.Screw the wing clip onto one end of the bolt. Make sure the wing clip is oriented so that they fold down towards the bolt when you pinch them.

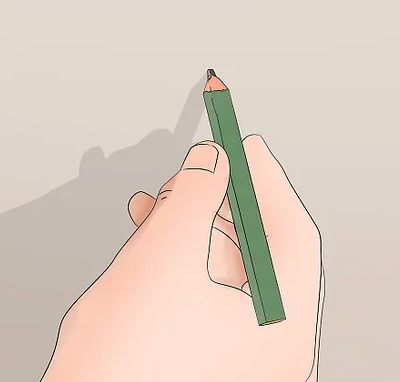

2.Mark a spot to drill a hole in the drywall with a pencil. Draw a small circle with the pencil to indicate where you will drill through the ceiling. This is where you will install the toggle bolt.

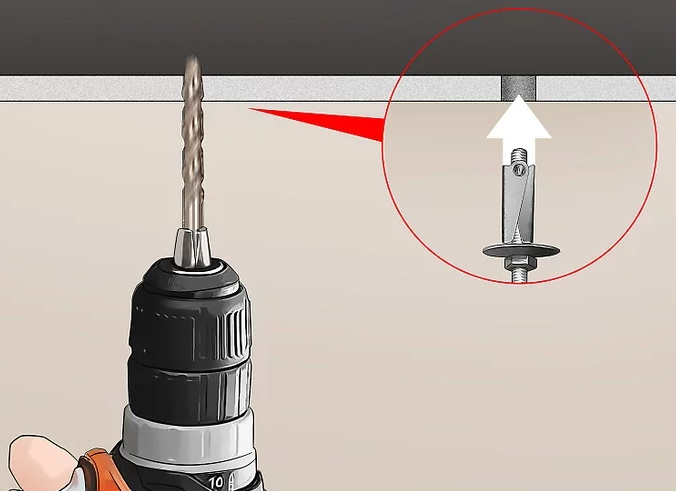

3.Drill a hole through the mark with an electric drill. Select a bit that is barely larger than the diameter of the toggle bolt when the wings are folded down. This will allow the bolt to pass through the hole when the wing clip is in the closed position.

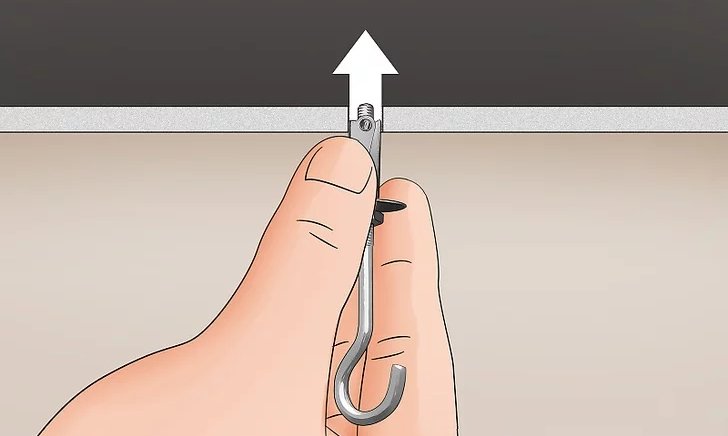

4.Pinch the wings together and insert them through the hole. Pinch the wings down against the bolt and hold them closed at the very ends between 2 fingers. Slide the top of the wings up through the hole. The wings will open when they reach the hollow space.

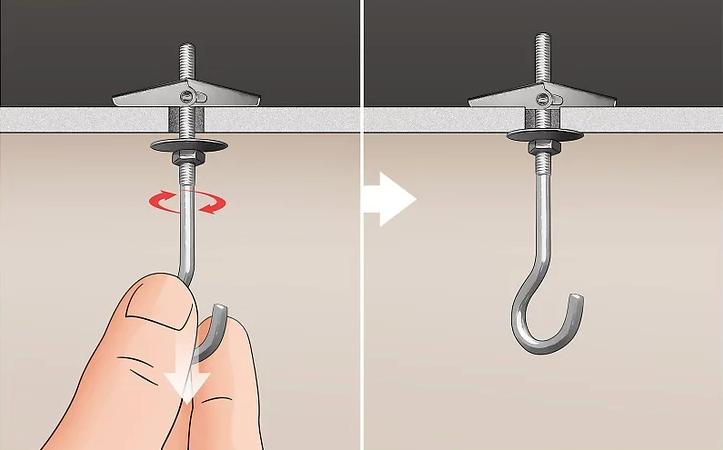

5.Tighten the bolt to make sure the wings are secure against the inside. Grab the hook and pull gently down. Turn the bolt clockwise to tighten it until the hook feels tight and is flush against the ceiling.


Hook Bolt

Metric thread, white zinc plated

1-1292

Item No.

Ø Hole

Wire Diameter

Total Length

Inner eye diameter

Bag

Carton

mm

mm

mm

mm

pcs

pcs

HB M3/60/85

3

2.6±0.1

85+2

13±1

100

600

HB M4/55/80

4

3.5±0.1

80+2

15±1

100

600

HB M4/70/95

4

3.5±0.1

95+2

15±1

100

600

HB M5/30/55

5

4.4±0.1

55+2

15±1

100

600

HB M5/70/100

5

4.4±0.1

100+2

15±1

100

600

HB M5/100/130

5

4.4±0.1

130+2

15±1

100

600

HB M6/30/60

6

5.2±0.1

60+2

15±1

100

600

HB M6/50/80

6

5.2±0.1

80+2

15±1

100

600

HB M6/70/100

6

5.2±0.1

100+2

15±1

100

600

HB M6/95/130

6

5.2±0.1

130+2

15±1

100

600

HB M8/60/100

8

7.0±0.2

100+2

24±1

100

400

HB M8/70/110

8

7.0±0.2

110+2

24±1

100

400

HB M8/85/130

8

7.0±0.2

130+2

24±1

100

400

HB M8/105/150

8

7.0±0.2

150+2

24±1

100

400

HB M10/75/130

10

9.0±0.2

130+3

24±1

50

200

HB M12/80/135

12

10.7±0.3

135+3

24±2

50

100

HB M12/120/150

12

10.7±0.4

150+4

24±2

50

100

HB M16/150/200

16

14.5±0.4

200+4

30±3

25

50

Application

Suited for applications on solid and semisolid supports: stone, concrete, solid brick, semisolid brick. Designed for joint scaffolding by means of extensions.

  • solid
  • semi
  • stone
  • hollow
